Feature
Smart

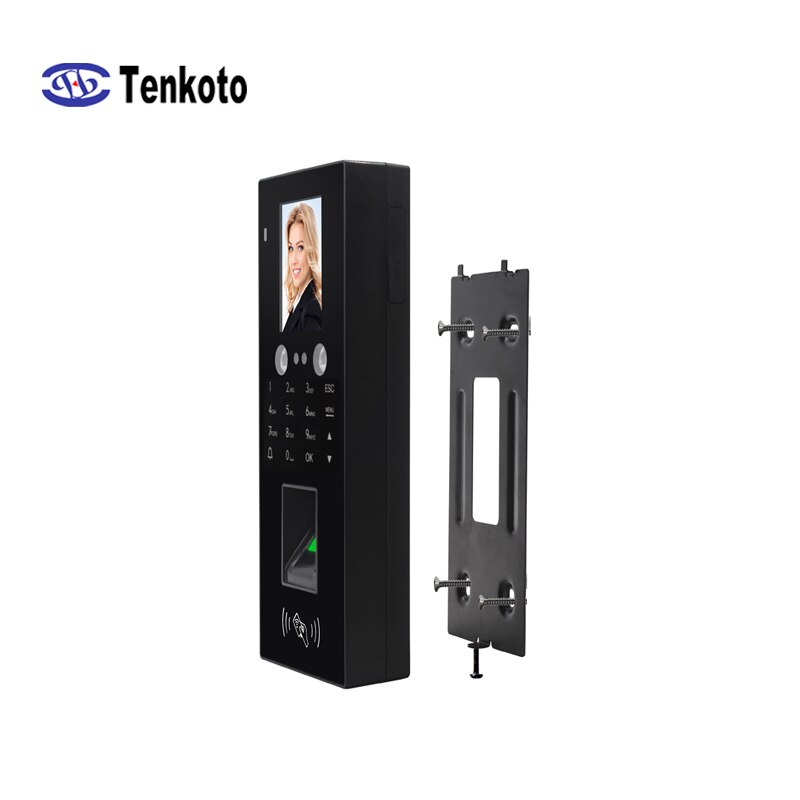

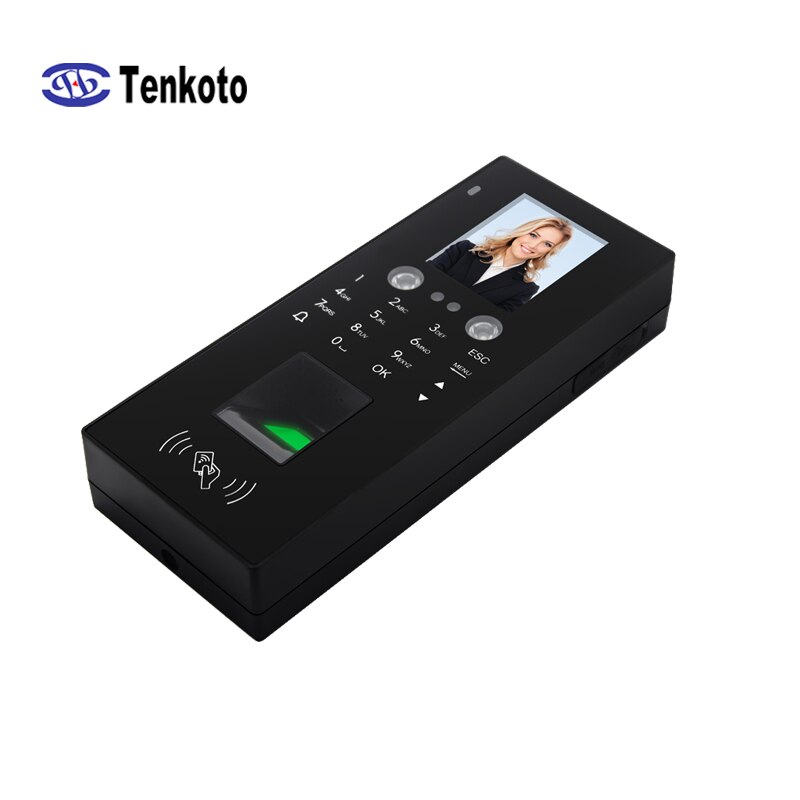

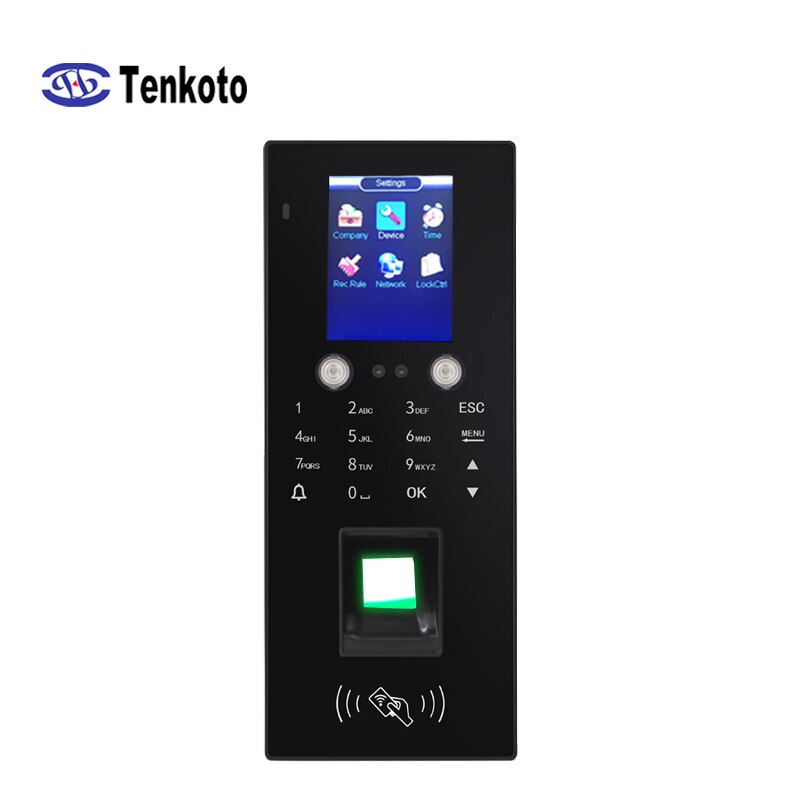

device T-20 is new machine for face and fingerprint with RFID
attendance and access control.The product has TCP/IP communication to
meet a variety of different network environment for different purpose.
Frequency | 125Khz and 13.56Mhz (ISO14443A) |
Language | English (OEM other) |
Support card | EM4100/EM4200/TK4100 and ID M1/S50/S70 etc. |
Display | 2.4-inch TFT color screen |
Resolution | 240 * 320 |
Face Camera | Dual-camera |
Access contronl interface | Wiegand 26/34 |
Face capacity | 300 PCS |
Card capacity | 1000 PCS |
Fingerprint capacity | 1000 PCS |
Password capacity | 1000 PCS |
Record cpacity | 0.16 million PCS |
Data download | U-Disk |
Power | +12V, 3A |
Service Temperature | -10°C~45°C |
Working humidity | 20 %~80 % RH |
Size | 194mm×89mm×34mm (Machine) |
Weight | 0.6KG |
Interface | TCP/IP, USB |
