Feature

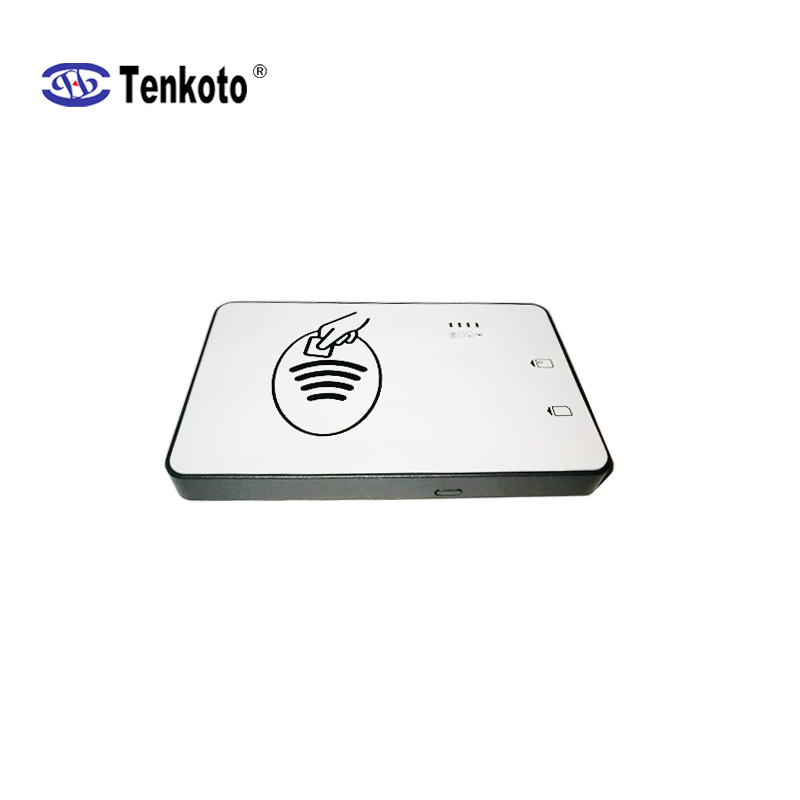

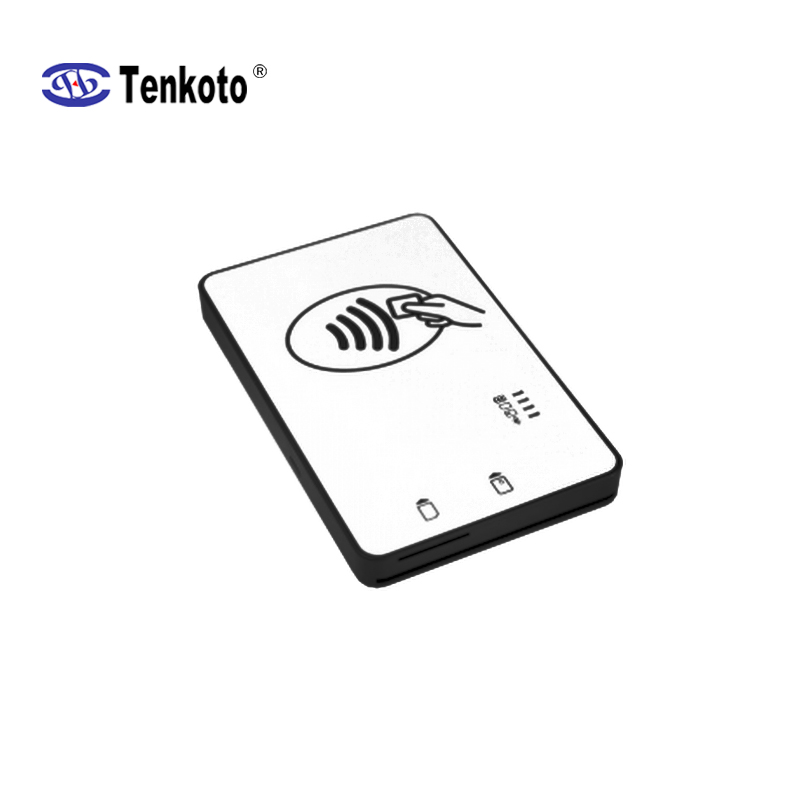

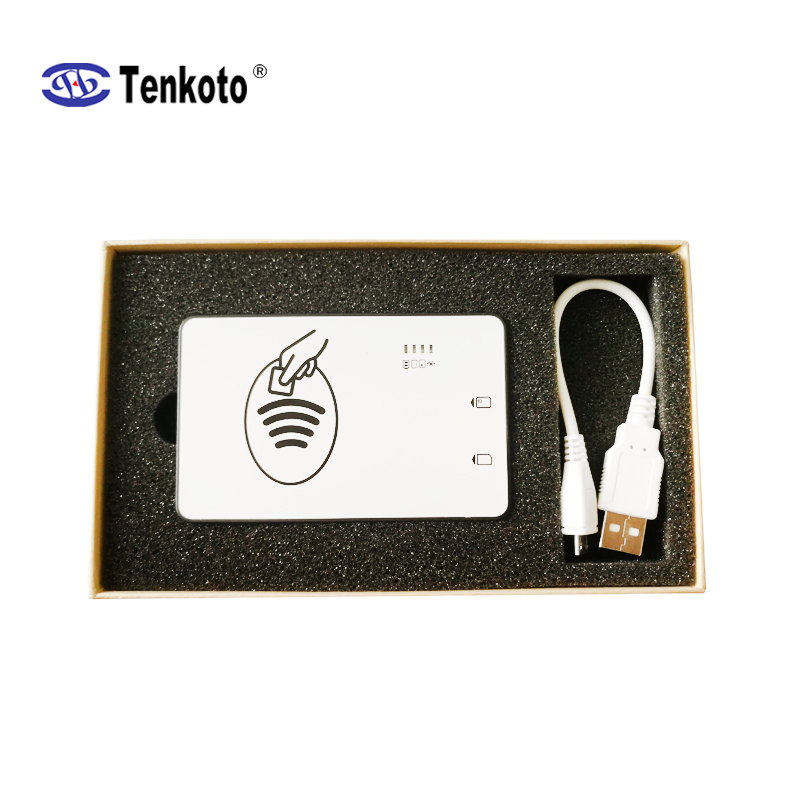

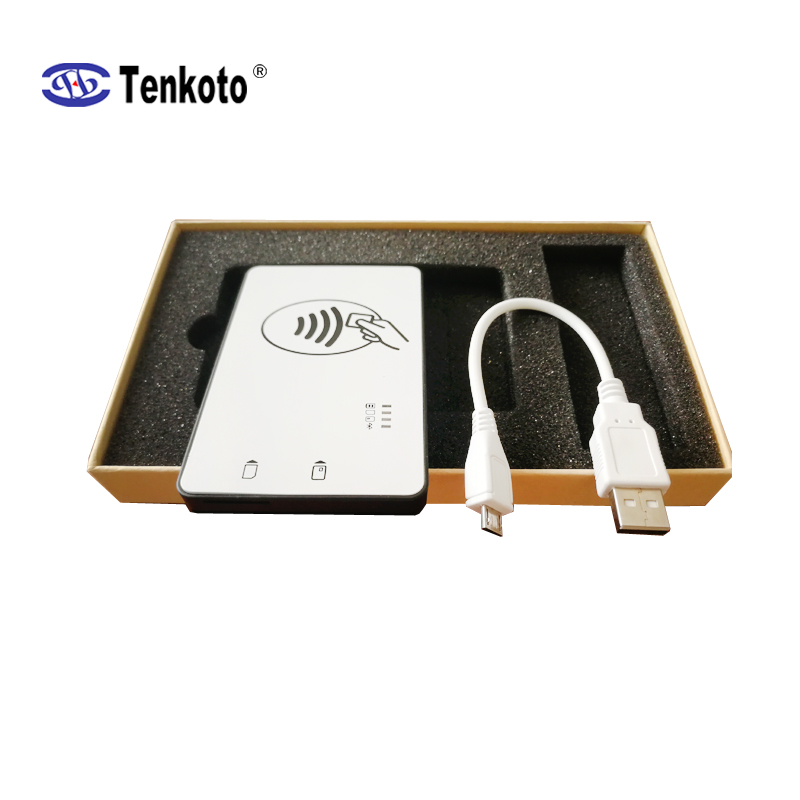

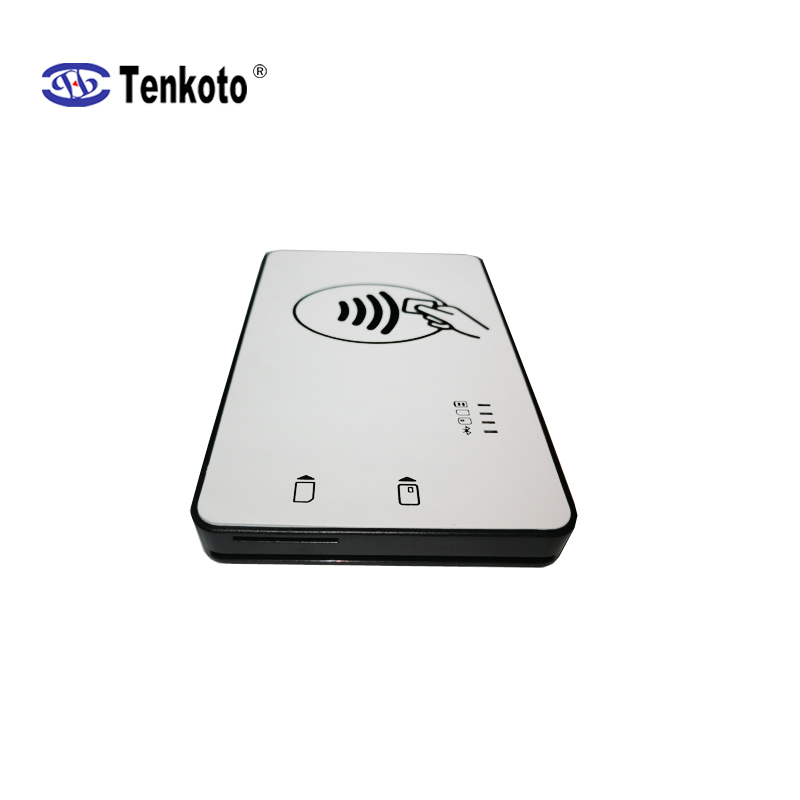

This is a dual-interface desktop reader that supports the international standard protocol ISO14443A/B+SAM. Connect with Android mobile phone, PC and related equipment through Bluetooth interface. Provide Android, IOS development kit.
Support ISO14443 A/B specification, Mifare A/B Type card
Support PBOC CPU card, memory card and multiple logic encryption cards
1 IC card and 1 SAM card slot design, support industry transaction services
4 LED indicators design
Support DES, 3 DES encryption operation
Support Bluetooth 4.0 communication interface
Using Micro USB interface, support USB2.0 specification
Specification
Size | 90*58*9.2mm |
Continue read card | 3 Hour |
Protocol | ISO14443A/B, ISO7816, PBOC2.0, EMV2000 |
Charging | Micro USB |
Distance | 0~3cm |
Power | DC 4.75V~5.25V，Working currency：500mA |
Standard | Contactless card: ISO14443 Type A and Type B etc. Contact chip: CPU card, SLE4428, SLE4442, AT24C01, AT24C02, AT24C04, AT24C08, AT24C16 |
Interface | Micro-USB 2.0 (HID), Bluetooth 4.0 |
Battery | 3.7V/160mAh |
Temperature | 0-50 degree |
Distance | 0-5cm |
Operating System | Windows, IOS, Android |
