Quickly identify the screen 1D code
No plugins, lightning billing
Application scenario is rich
Appearance with ergonomic design
Stable, precise, convenient, practical and efficient
Compatible with a variety of systems

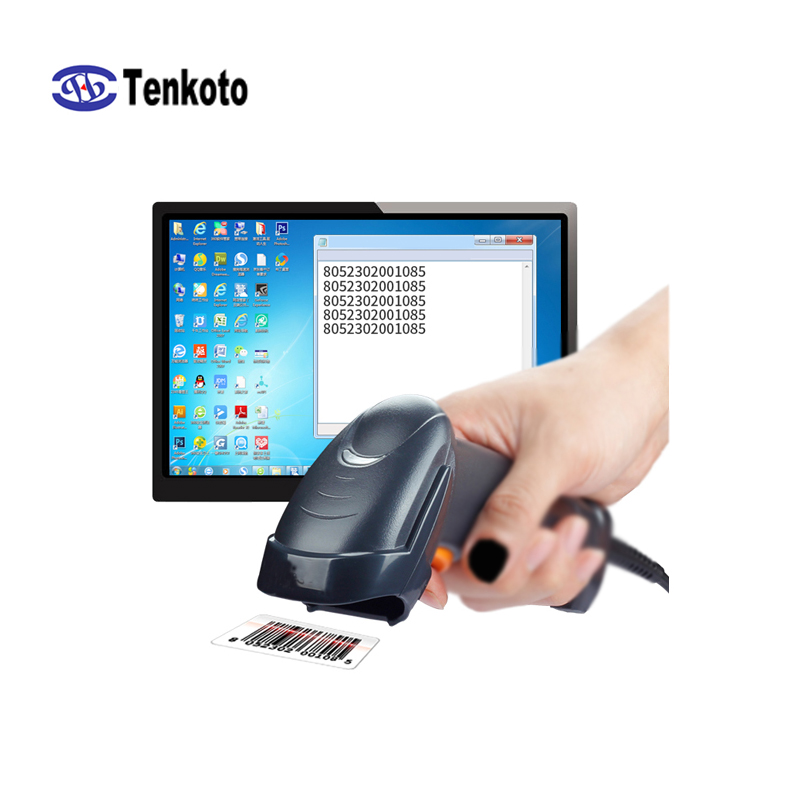

Application Scenarios: Supermarket/convenience store cashiers, customer service desks, ticket ticketing windows, O2O application sites
Specification
Model Name | UG5100 |
Barcode reading speed | 200 times/sec |
Identify the lowest contrast | 25% of the reflection difference |
Reading angle range | ±65°, ±70°, ±45° (left, right, forward, backward, rotation) |
Decoding accuracy | 0.0762mm (3mil) |
Decoding distance | 5-680mm (minimum and maximum) |
Reading Code System | UPC-A, UPC-E/E1, EAN-13, EAN-8, ISBN/ISSN, 39 yards, 39 yards (ASCII full yard), 32 yards, Trioptic 39 yards, cross 25 yards, industrial 25 yards ( Discrete 2of 5), Matrix 25 yards, Kudaba Code (NW7), 128 yards, UCC/EAN 128, ISBT128, 93 yards, 11 yards (USD-8), MSI/Plessey, UK/Plessey |
Light source type | Laser 650nm±10nm |
Optical coating finishing | Silver Coating |
Interface Type | USB 2.0 |
Tips | Buzzer sounds |
Environmental adaptation parameters | |

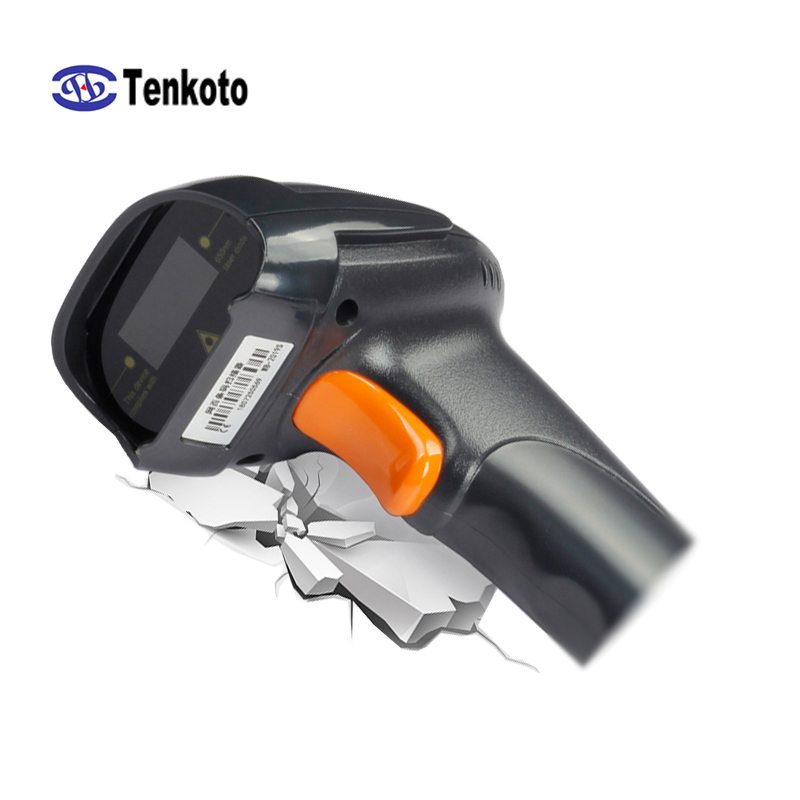

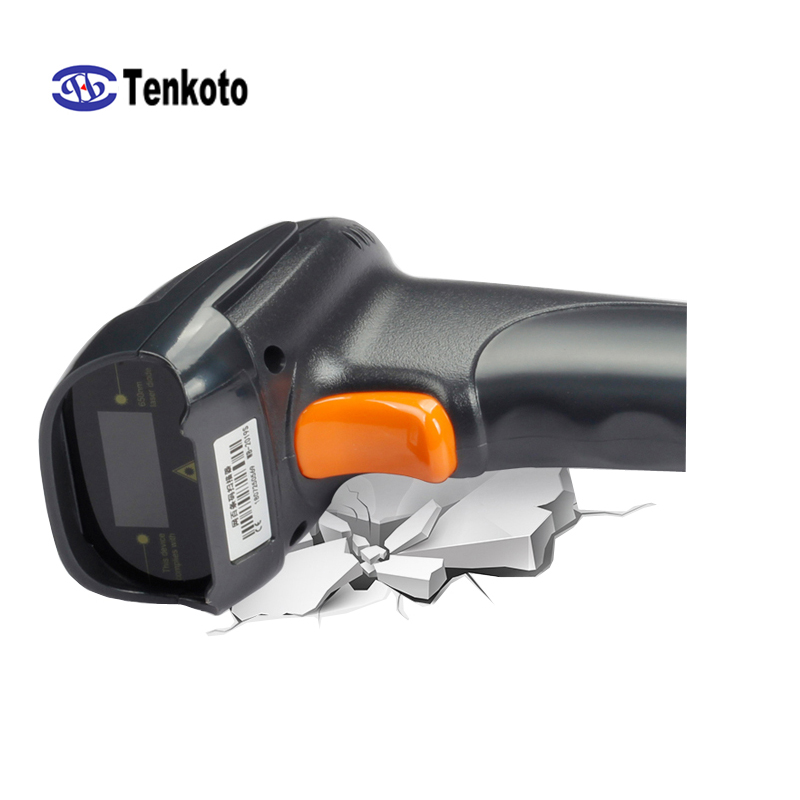

Impact resistance | 1.5 meters free fall drop |
Operating temperature range | -15°C--45°C |
Storage temperature range | -25°C--65°C |
Operating Humidity Range | 10-92% |
Humidity range | 10-92% |
Ambient light intensity | Max.5,000 Lux (fluorescence) |
Physical parameters | |
Net weight | 200g |
Gross weight | 250g |
Main engine size （L*W*H） | 163*75*95(mm) |
Packing size （L*W*H） | 225*106*87(mm) |
Electrical parameters | |
