Scan distance

0-206mm(UPC/EAN 100%,PCS=90%)

Scan pattern

5 directions of scan field

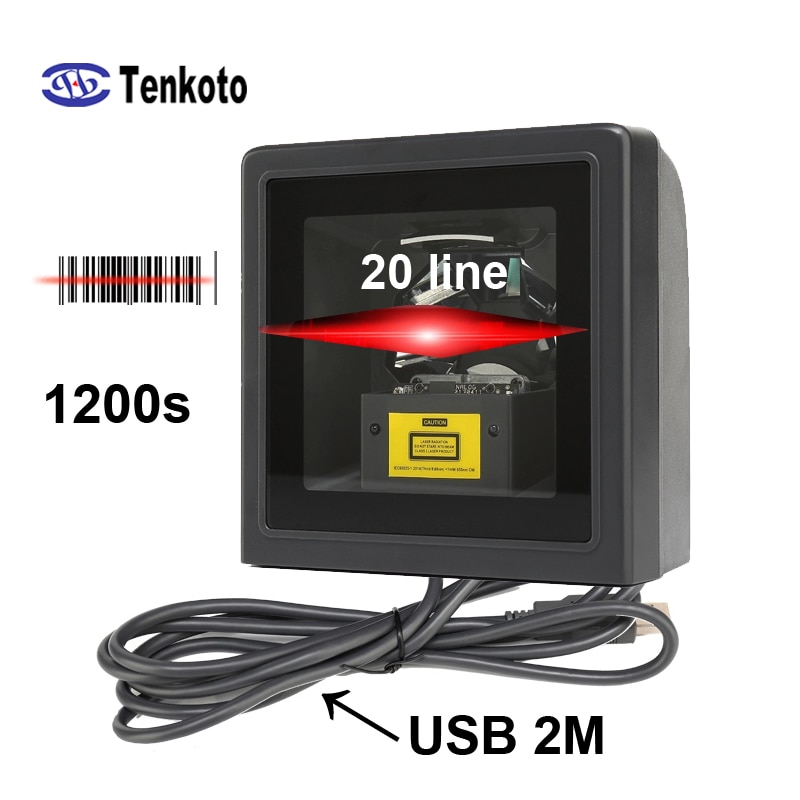

Scan line

20 lines

Scan speed

1200scans/sec

Resolution

5mil / PCS90%

Indicator light

Bi-Color LED(blue and red)

Light source

650nm visible laser diode (VLD)

Dimension

180*140*102 mm( L*D*W )

weight

385g

Length of Cable

2M

Working current

180mA / 5.0V

Input Voltage

DC 5V±10%

Working temperature

0℃~40°C    (32°F - 104°F)

Storage temperature

-20℃~+60℃    (-4°F -140°F)

Operating humidity

5%~90% (Non-condensing)

Optical property

Max 2500LUX (Fluorescence)

Drop test

1m/3.28ft drop onto concrete surface

Buzzer

Frequency and Volume is available to adjust Widely integrated in?ATM machines, information kiosks,check price machine, lottery machine

Code Type

UPC/EAN/JAN, UPC-A&UPC-E, EAN-8&EAN-13, JAN-8&JAN-13, ISBN/ISSNCode 39(with full ASCII), Codabar(NW7), Code 128&EAN 128, Code 93,Interleaved 2 of 5(ITF), Addendum 2 of 5, IATA Code China Postal Code, Code 32(Italian Pharmacode), MSI/Plessy,RSS 14, RSS Limited RSS Expanded
