Feature

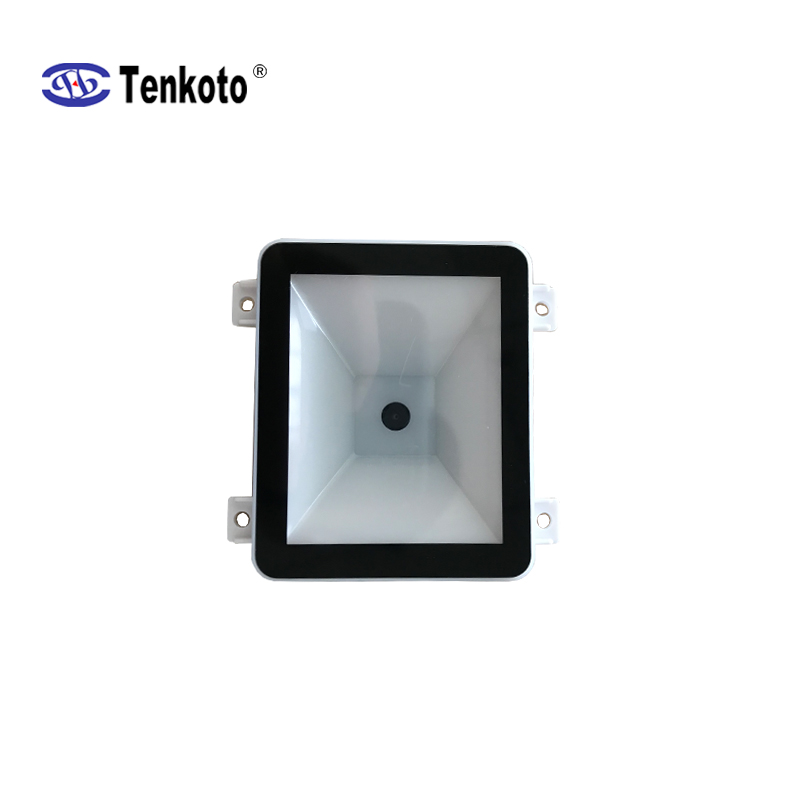

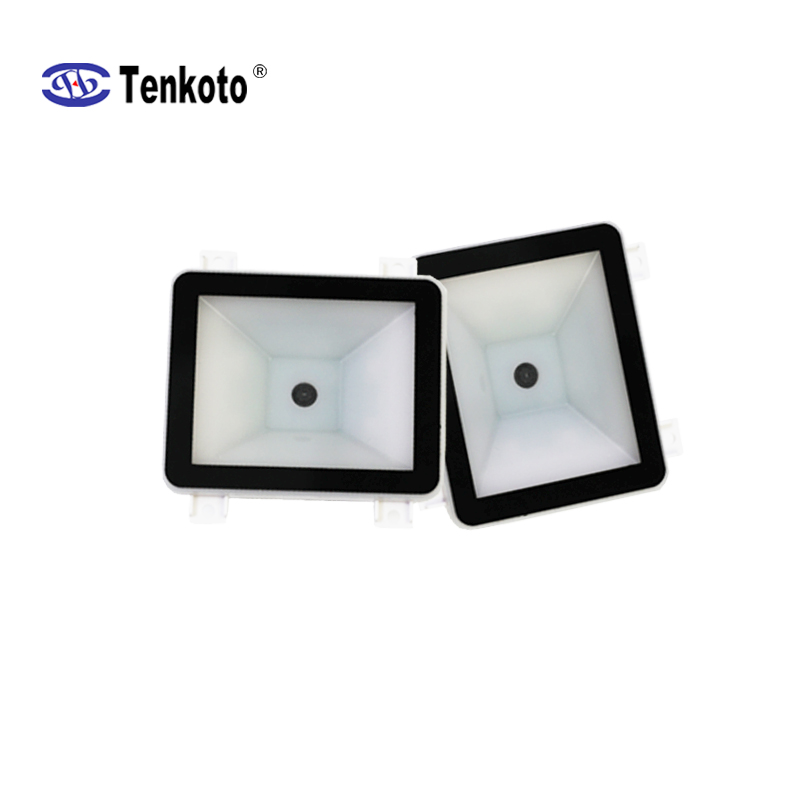

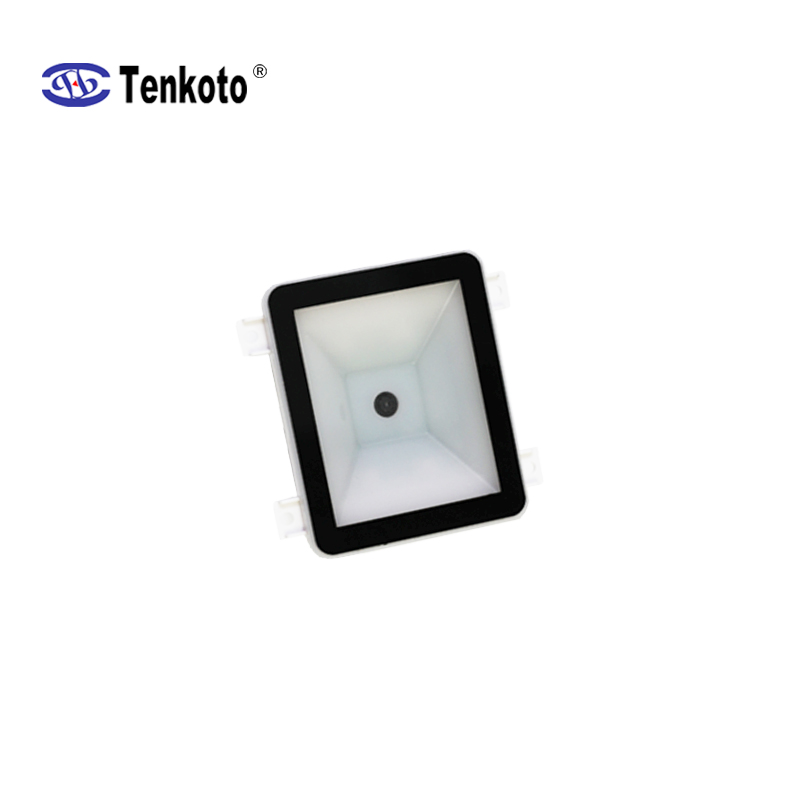

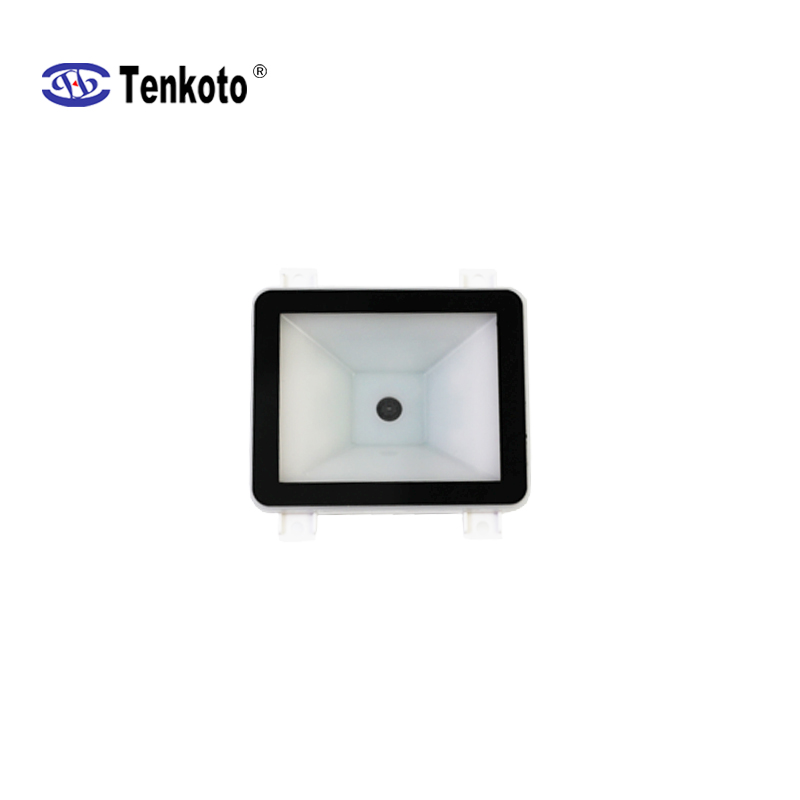

Mini size can be integrate in KIOSK, POS Terminal or vending machine scanner engine. Quickly detect 1D and 2D Barcode.
USB and Serial TTL multiple interface is supported.
Specification
Light Source | LED White Light/Optional |
Reading Accuracy | ≥10mil |
Camera Pixels | 30W pixels |
Barcode Type | QR Code, Data Matrix,PDF417,Code 128,EAN-8, EAN-13,Interleaved 2 of 5,UPC-A, Code 39,UPC-E, |
Reading Depth | 0-270MM |
Contrast | ≥30% |
Light | Scan barcode setting |
Interface | USB (Optional RS232/TTL) |
Scan Mode | Automatic trigger (trigger mode can be set) |
Size | 53*65*25mm |
Working Voltage | 3.3-5VDC±10% |
Standby Current | 31-51mA |
Working Temperature | 0~50℃ |
Operation Humidity | 5%-85% |
Scanning Theory | CMOS |
Resolution | 640*480 pixels |
Support Barcode | 1D+2D+QR |
Scan Angel | Rotate 360, tilt ±60, deflection ±60 |
Scan Speed | 98 Time/s |
Dedication | Buzzer |
Net Weight | 35g |
Color | White |
Working Current | 44mA±5% (Typical value) 50mA±5% (Max) |
Consumption | 116-223mw |
Storage Temperature | -20℃-60℃ |
Storage Humidity | 5%-85% |
