Feature
Full Page Passport Reader is a compact, fast and multi-functional document reader based on OCR technology. It is designed for extracting data from ICAO standard travel documents. It provides ideal solutions for identifying Passports, Visa, ID cards, Driver License and other travel documents.
1. Read ICAO compliant & Non-ICAO documents
2. Obtain digital data from contactless chips(RFID)
3. Capture images in white, IR & UV Illuminations
4. Combine with high accuracy OCR SDK
5. Applicable for self-service kiosk
6. Provide OCR customization service
Specification
Machine Readable Zone | ICAO 9303 standard compliant documents: ID-1 (Identity Card) ID-2 (Visa) ID-3 (Passport) |
Visual Inspection Zone | Customization based on clients` requirements Read contactless ICs according to ISO/IEC 14443-S (Type A/B) Support e-passport Basic Access Control (BAC) & Extended Access Control (EAC) |
RFID (Optional) | Support active/passive authentication 1D: Code 128, Code 39, Interleaved 2 of 5 2D: PDF 417, QR Code, Data Matrix , Aztec Code |
Resolution | 500DPI |
Illumination | Visible, IR and UV (Optional) |
Color Depth | 24 bits/pixels |
Sensor | CMOS, 5.0 Megapixels (2592*1944) |
Image Format | JPG, BMP, PNG |
Field of View | 127mm*88mm |
Supported Operation System | Windows 7,8,10,Vista,XP (32/64 bit WHQL certified) Windows Server 2003 & 2008 (32/64 bit) Linux Ubuntu, CentOS, RedHat Android |
Development kit | Complete OCR SDK including DLLs, OCXs, WebSocket, Samples and Demo program |
Programming Languages | C#, C/C++, Java, Delphi, Visual Basic 6.0, VB.NET |
Security Check | UV Dull Paper Check; MRZ Comparison; Portrait Comparison; IR B900 Ink check. |

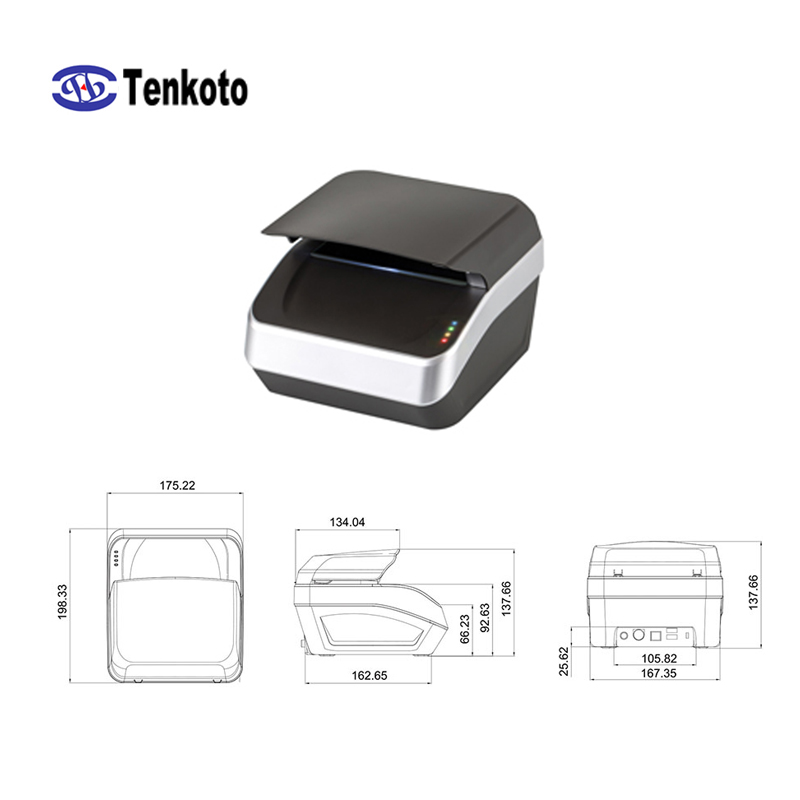

Dimension | 175*199*140mm(width*depth*height) |
Weight | 1.25kg (Net) 2.00kg (Gross) |
Interface | USB 2.0 |
Status LEDs | Power, Ready, Error and Warning |
Buzzer | Build-in buzzer |
Power | Input: AC 100~240V, 50-60Hz, 0.8A Output: DC 12V, 2A |
Operating humidity | 20%-95%(non-condensing) |
Temperature | -10 to 50 Operating; -20 to 50 storage |
Warranty | 1 year warranty, extensible |
