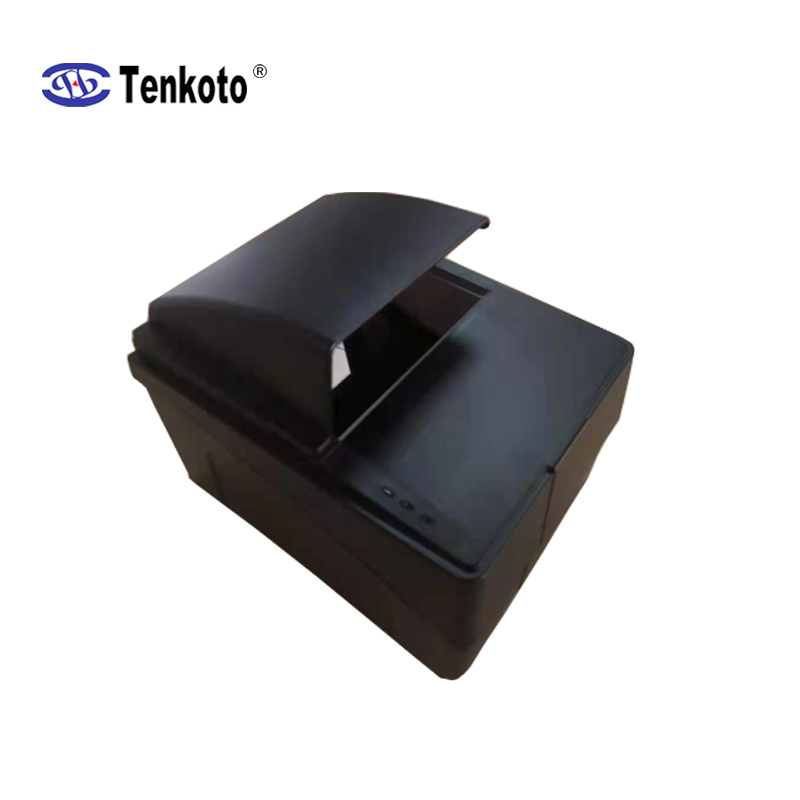

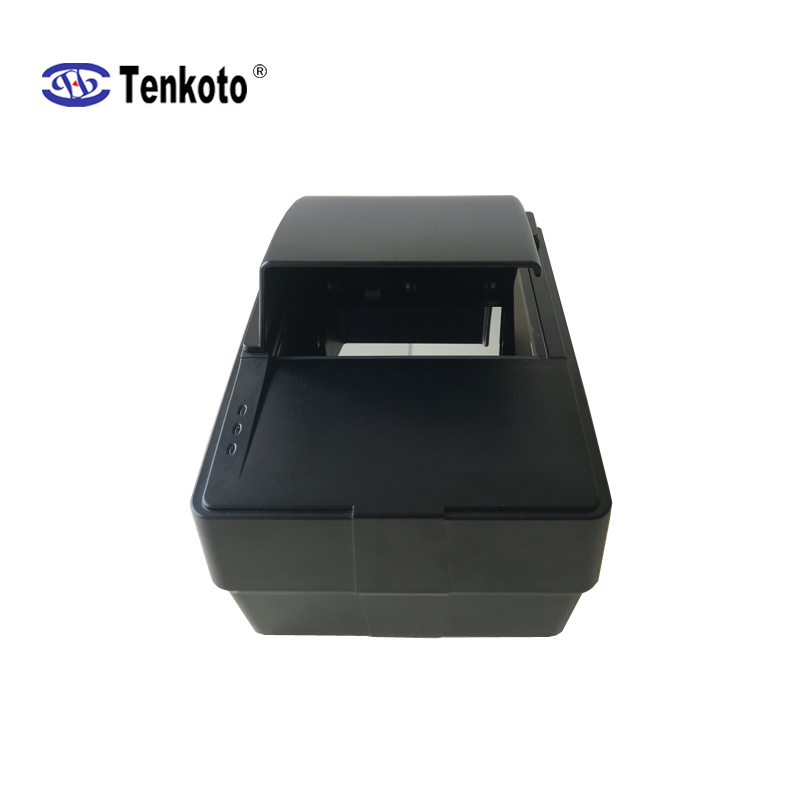

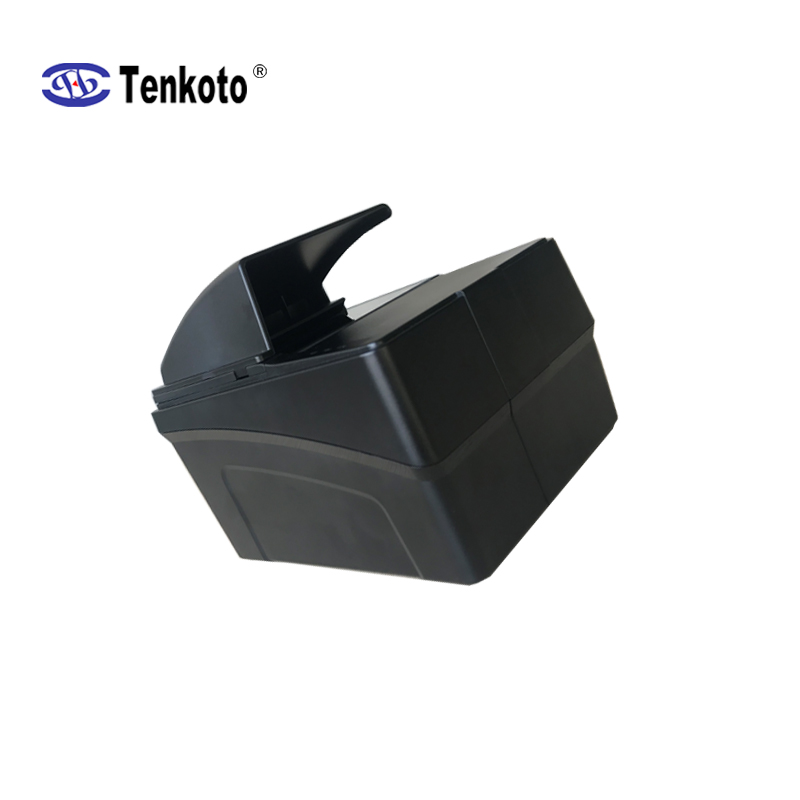

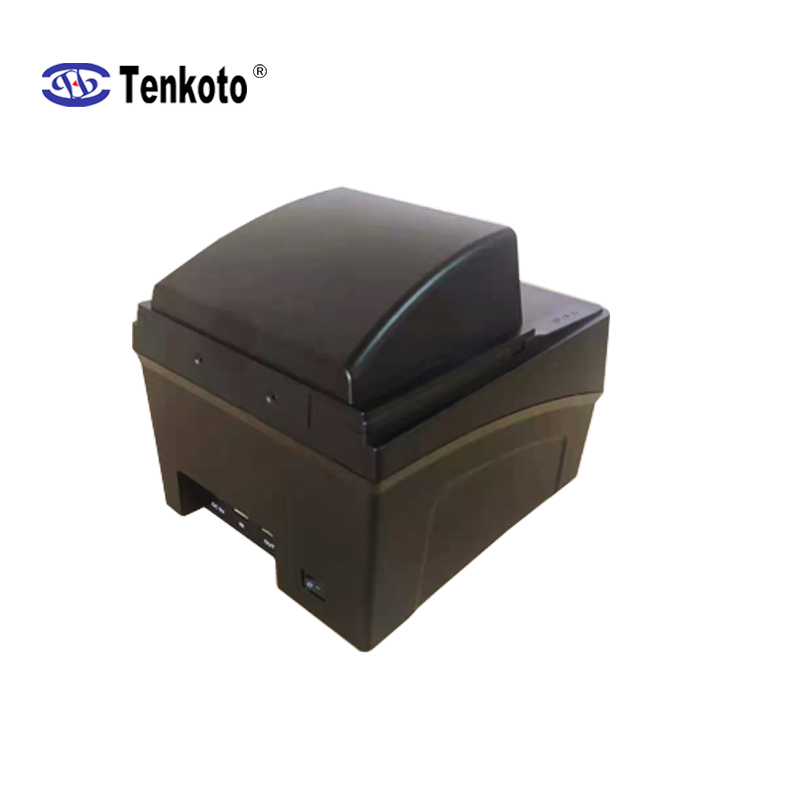

OCR100+ Passport Scanner
Product Use
The OCR100+ Passport Reader inspects and images Machine ReadableTravelDocuments(MRTDs)inavarietyof market segments. This includes applications that are primarily focused on data capture opportunities in hotels, casinos, liquor stores, bars, bank, airport, customs, embassy, government, and rental car companies.
Comprehensive Software Features
>Flexible software interface allows host application to select which illumination sources to use, image type, image compression, photo extraction, LED control, DG1~DG16 data output etc.
KEY STANDARD FEATURES & FUNCTIONALITY
> Simple high level API for quick program development or detailed low level API for fine control of all reader functions
> Multiple document reading and imaging capability – imaging in 24-bit color > SDK provides full configuration API > 300 DPI high resolution imaging
User Feedback
> Scanning window 92mm x 125mm > Light: programmable multicolor LEDs
> Sound: buzzer output with reading finish
> Multiple wavelength illumination – Visible – IR Reading Capability The OCR100+ Passport Reader reads the following: – UV
> ICAO compliant documents in near infrared (IR) per ICAO 9303 specification Parts 1-4 > OCR data capture
> ISO 14443 Type A and B and C contactless ICs at 13.56MHz > Passports, e-Passports, ID cards, visas, etc. > Complete access to OCR / RFID data and images captured via Software Development Kit (SDK)
Illumination
> Enables images to be accessed as BMP and JPG format The reader illuminates documents in multiple wavelengths
> Near IR B900, 860nm
> Auto-triggering of document capture – presence
> White visible, 430-680nm of document is automatically detected
> UV A, 365nm > USB 2.0 high speed compatible
Resolution
> Comes with an IP50 rating for dust ingress protection
> Sensor: 3.1Megapixels, CMOS, RGB 24 bit color system
> Standard 300 DPI image resolution
Standard Dimensions e-Passport (RFID)
> Length: 20.96 cm Contactless IC reading and writing capability according to:
> ISO 14443 Type-A and B and C using a PC/SC interface
> Width: 16.9 cm > Height: 17.0 cm (with light shield)
> Net Weight: < 1.2 kg
> e-Passport support for ICAO 9303 LDS and PKI using included SDK
> All standardized rates, up to 848 Kbps, read-out times depend on RFID tag, operating system and amount of data stored in the chip
> Gross Weight: < 2.2 kg
> Packing size: 37*26*25 cm
> PC/SC interface provides support to other card types such as Mifare™
Status Indicators
The reader provides user feedback via the following status indicators:
> Red - Read Error LED Minimum PC Specification
> Blue - Ready LED Software must be installed on a customer‐supplied PC. The following minimum configuration is recommended to maintain the processing speed indicated above:
> Green - Reading LED The reader performs a power-up self-test and indicate failure using status LEDs.
> 2.0 GHz Intel Core i3 > 2 GB DRAM
Operating Environment
> USB 2.0 High Speed
> 100 GB of Hard Drive
> Humidity: 20 to 95% (R.H.non-condensing)
> Windows® 7 operating systems, 32 and 64 bit 10 operating systems, 64 bit
> Temperature: 0 to 50 C operating; -20 to 50 C storage Windows®
Power Maximum flexibility in systems integration
> Software development kit provides easy migration to new reader; includes demos, code samples and utilities
> Powered from universal input external power supply: External 5VDC 2A Input voltage 100 - 240VAC, Frequency 50 - 60Hz
Service & Maintenance Firmware Upgrade
> One-year warranty
> Upgradeable firmware via USB 2.0 interface
> Configurable via USB 2.0 interface
> Non-volatile configuration
> Annual maintenance agreement available
MARKET SEGMENT Government APPLICATION
Quality assurance for e-Passport issuance Travel document authentication for border control Breeder document verification for ID/DL issuance
Transportation Retail
Verify airline traveler ID or boarding pass at security checkpoint or boarding gate ID fraud and loss prevention for mobile phone stores and car rental agencies
Financial
New account enrollment for banks ID verification for check cashing
Hospitality
Hotel/casino guest ID data extraction, Hotel/casino vendors and employees vetting
